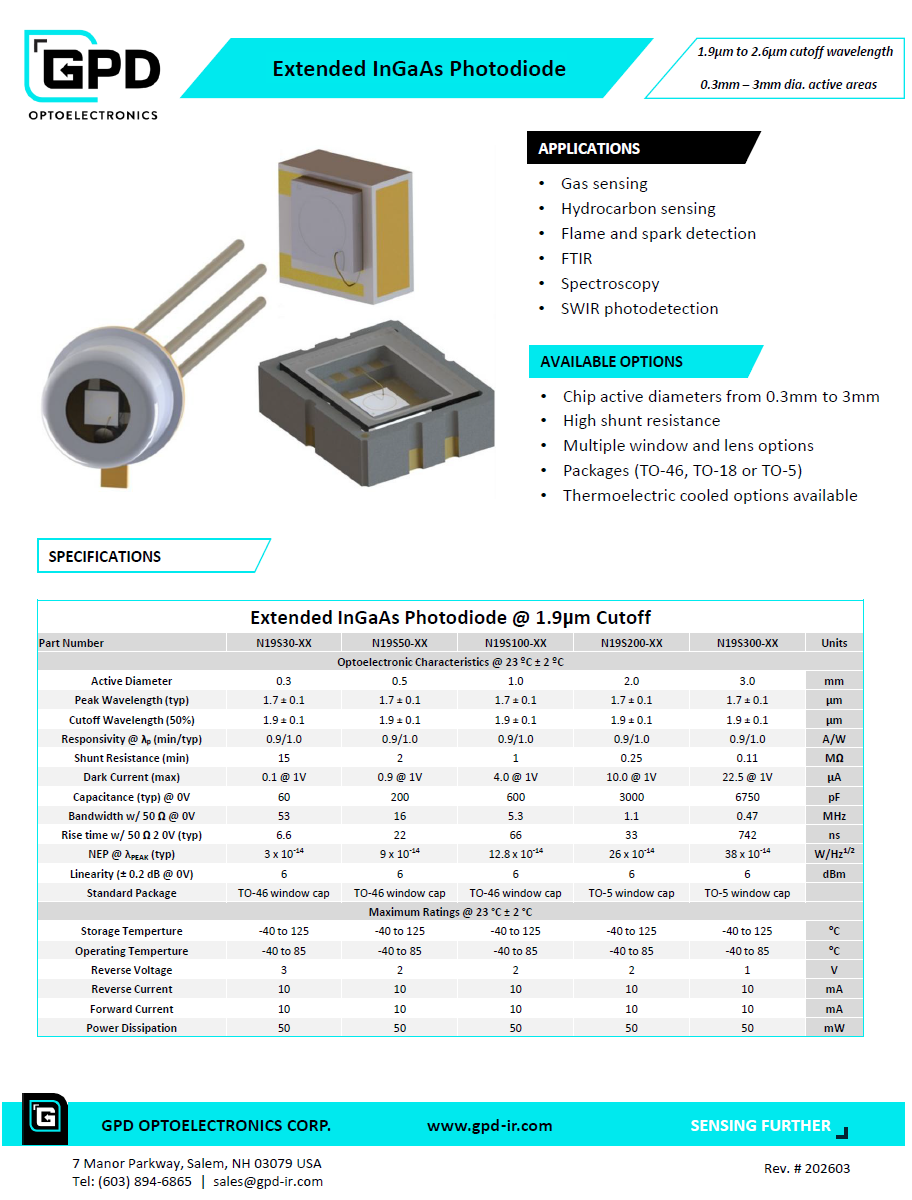

Optoelectronic Characteristics @ 23 ºC ± 2 ºC |
|||||
|
Wavelength Family |
1.9 |
2.05 |
2.2 |
2.6 |
um |
|
Model |
N19S1 |
N21S1 |
N22S1 |
N26S1 |
|
|
Active Diameter |
1 |
1 |
1 |
1 |
mm |
|
Spectral Response Range |
1000 to 1900 |
1000 to 2100 |
1000 to 2300 |
1000 to 2600 |
nm |
|
Peak Wavelength (typ) |
1750 |
1900 |
2000 |
2000 |
nm |
|
Responsivity @ 1750 nm |
0.9 / 1.0 |
0.9 / 1 |
0.9 / 1 |
0.9 / 1.0 |
A/W |
|
Shunt Resistance (min/typ) |
1 / 2.5 |
0.01M / 0.3M |
40k / 75k |
3 / 6 |
MΩ |
|
Dark Current (typ/max) @ VR |
1.5 / 4 @ 1 V |
3 / 4 @ 1 V |
3 / 20 @ 1 V |
10 / 25 @ 0.5 V |
µA |
|
Capacitance (typ/max) @ 0 V |
120 / 700 |
180 / 500 |
465 / 800 |
500 / 800 |
pF |
|
NEP @ λPEAK @ 0 V (typ) |
80 |
230 |
466 |
1650 |
fW/Hz1/2 |
|
Linearity (± 0.2 dB) @ 0 V |
6 |
6 |
6 |
6 |
dBm |
|
Package |
TO-46/TO-18 |
TO-46/TO-18 |
TO-46/TO-18 |
TO-46/TO-18 |
|
|
Storage Temperature |
-40 to 125 |
-40 to 125 |
-40 to 125 |
-40 to 125 |
ºC |
|
Operating Temperature |
-40 to 85 |
-40 to 85 |
-40 to 85 |
-40 to 85 |
ºC |
|
Max Reverse Voltage |
2 |
2 |
1 |
0.5 |
V |
|
Max Reverse Current |
-10 |
-10 |
-10 |
-10 |
mA |
|
Max Forward Current |
10 |
10 |
10 |
10 |
mA |
All Cut Off Wavelengths are available in 0.3 mm, 0.5 mm, 2 mm, and 3 mm diameter active area detectors
